Solutions for Pipe Flow Modeling

Design or troubleshoot safe, reliable, and efficient piping systems.

Pipe Flow Modeling - Hero
Trusted BY

Explore Our Pipe Flow Modeling Products

Fathom

Calculate pressure drop and pipe flow distribution in liquid and low-velocity gas piping and ducting systems.

Arrow

Determine the pressure drop and flow distribution in gas or steam piping systems.

Impulse

Analyze pressure surge transients in pumping systems caused by water hammer.

xStream

Simulate high-speed, acoustic transients in steam and gas piping systems.

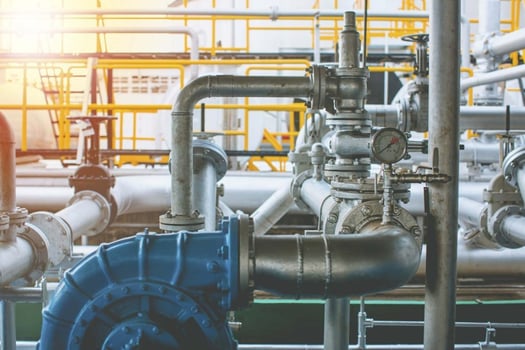

Steady-state liquid flow

Significantly improve the quality of systems engineering you can achieve by experimenting with operating conditions and scenarios. Easily change system input data, including valve positions, pump operation, control set points, pressures, temperatures, and more.
Learn More About Fathom
Pipe-Flow-Feature-1 Pipe-Flow-Feature-1

Model steady-state gas and steam flow

Simulate individual components and their interaction including effects of heat transfer, real gases, and choked flow. Utilize a wide array of features without sacrificing your need for a short learning curve.
Learn More About Arrow
Pipe-Flow-Feature 2 Pipe-Flow-Feature 2

Ensure pressure extremes are within design allowables

Holistically analyze pumping systems to avoid the potentially catastrophic effects of surge / water hammer and undesirable system transients. Easily model a wide range of system components and surge devices.
Learn More About Impulse
PipeFlow-Feature 3 PipeFlow-Feature 3

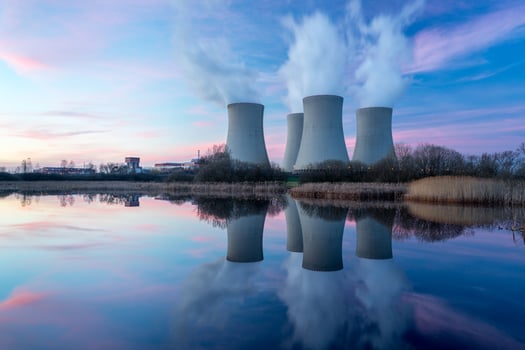

Solve challenging steam and gas transient problems

Accurately simulate how your steam and gas systems will respond to potentially disruptive transient events.
Learn More About xStream
Pipe-Flow-Feature 4 Pipe-Flow-Feature 4
Settling Slurry

Settling slurry module

Accurately account for slurry properties, changing concentrations, and pump performance with Fathom to avoid system failure and excessive operational costs. Then, easily transition your Fathom model to Impulse to quickly analyze both non-settling and settling slurry water hammer effects.
Pipe-Flow-Feature 5 Pipe-Flow-Feature 5

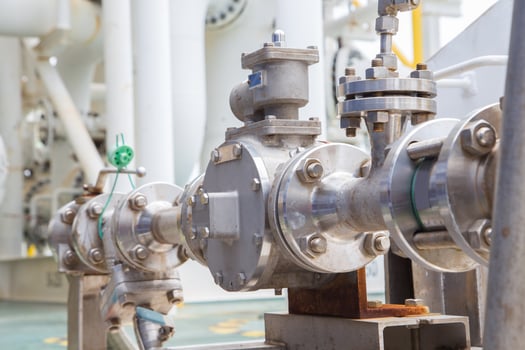

Plusation Frequency Analysis

Predict resonant frequencies in systems

Identify and avoid resonant frequencies in systems, especially in those caused by positive displacement pumps or reciprocating compressors. Avoid system weakening or failure, reduce operating and maintenance costs, and minimize disruptions in production processes.
Pipe-Flow-Feature 6 Pipe-Flow-Feature 6

Results

Used in 115+ countries, Datacor's suite of pipe flow modeling software helps engineers in almost every industry efficiently design and troubleshoot piping systems.
Explore Customer Stories
Fathom
Petrochemical-Hero and Footer
28% chemical process production
Arrow
Orbital
25-30% reduced system power consumption
Impulse
Data Center - Feature 6
1000+ Pipes avoid cavitation
Fathom
Worley
$800K increased efficiency

Pipe Flow Modeling Resources

Explore More Resources
Icon_Engineers

Discover how Pipe Flow Modeling software can help you design safer, more efficient systems.
